/home/trilog/Desktop/project/gui/Final/src/lib/qextserialport/qextserialport.h File Reference

#include "qextserialport_global.h"
#include <QIODevice>
#include <QMutex>

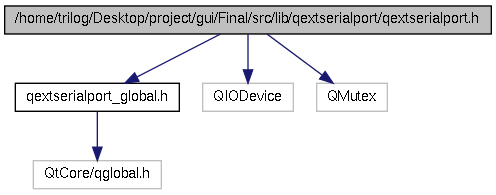

Include dependency graph for qextserialport.h:

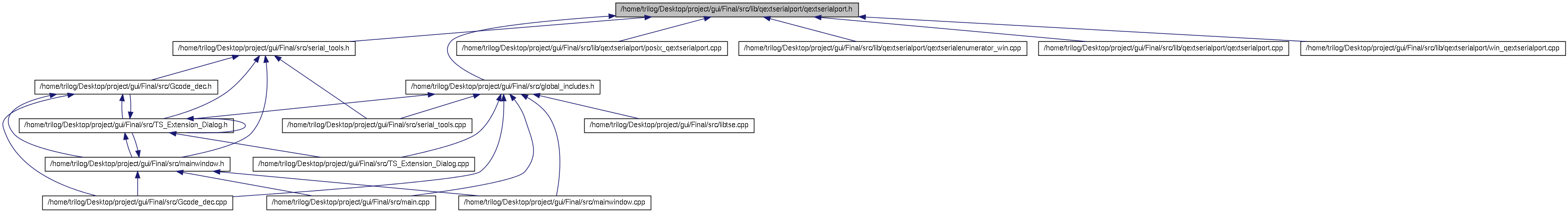

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	PortSettings
class	QextSerialPort
Defines
#define	TTY_PORTABILITY_WARNING(s)   qWarning(s)
#define	TTY_WARNING(s)   qWarning(s)
#define	LS_CTS   0x01
#define	LS_DSR   0x02
#define	LS_DCD   0x04
#define	LS_RI   0x08
#define	LS_RTS   0x10
#define	LS_DTR   0x20
#define	LS_ST   0x40
#define	LS_SR   0x80
#define	E_NO_ERROR   0
#define	E_INVALID_FD   1
#define	E_NO_MEMORY   2
#define	E_CAUGHT_NON_BLOCKED_SIGNAL   3
#define	E_PORT_TIMEOUT   4
#define	E_INVALID_DEVICE   5
#define	E_BREAK_CONDITION   6
#define	E_FRAMING_ERROR   7
#define	E_IO_ERROR   8
#define	E_BUFFER_OVERRUN   9
#define	E_RECEIVE_OVERFLOW   10
#define	E_RECEIVE_PARITY_ERROR   11
#define	E_TRANSMIT_OVERFLOW   12
#define	E_READ_FAILED   13
#define	E_WRITE_FAILED   14
#define	E_FILE_NOT_FOUND   15
Enumerations
enum	BaudRateType {   BAUD50, BAUD75, BAUD110, BAUD134,   BAUD150, BAUD200, BAUD300, BAUD600,   BAUD1200, BAUD1800, BAUD2400, BAUD4800,   BAUD9600, BAUD14400, BAUD19200, BAUD38400,   BAUD56000, BAUD57600, BAUD76800, BAUD115200,   BAUD128000, BAUD256000 }
enum	DataBitsType { DATA_5, DATA_6, DATA_7, DATA_8 }
enum	ParityType {   PAR_NONE, PAR_ODD, PAR_EVEN, PAR_MARK,   PAR_SPACE }
enum	StopBitsType { STOP_1, STOP_1_5, STOP_2 }
enum	FlowType { FLOW_OFF, FLOW_HARDWARE, FLOW_XONXOFF }

---

Define Documentation

#define E_BREAK_CONDITION   6

Definition at line 42 of file qextserialport.h.

#define E_BUFFER_OVERRUN   9

Definition at line 45 of file qextserialport.h.

#define E_CAUGHT_NON_BLOCKED_SIGNAL   3

Definition at line 39 of file qextserialport.h.

#define E_FILE_NOT_FOUND   15

Definition at line 51 of file qextserialport.h.

#define E_FRAMING_ERROR   7

Definition at line 43 of file qextserialport.h.

#define E_INVALID_DEVICE   5

Definition at line 41 of file qextserialport.h.

#define E_INVALID_FD   1

Definition at line 37 of file qextserialport.h.

#define E_IO_ERROR   8

Definition at line 44 of file qextserialport.h.

#define E_NO_ERROR   0

Definition at line 36 of file qextserialport.h.

#define E_NO_MEMORY   2

Definition at line 38 of file qextserialport.h.

#define E_PORT_TIMEOUT   4

Definition at line 40 of file qextserialport.h.

#define E_READ_FAILED   13

Definition at line 49 of file qextserialport.h.

#define E_RECEIVE_OVERFLOW   10

Definition at line 46 of file qextserialport.h.

#define E_RECEIVE_PARITY_ERROR   11

Definition at line 47 of file qextserialport.h.

#define E_TRANSMIT_OVERFLOW   12

Definition at line 48 of file qextserialport.h.

#define E_WRITE_FAILED   14

Definition at line 50 of file qextserialport.h.

#define LS_CTS   0x01

Definition at line 26 of file qextserialport.h.

#define LS_DCD   0x04

Definition at line 28 of file qextserialport.h.

#define LS_DSR   0x02

Definition at line 27 of file qextserialport.h.

#define LS_DTR   0x20

Definition at line 31 of file qextserialport.h.

#define LS_RI   0x08

Definition at line 29 of file qextserialport.h.

#define LS_RTS   0x10

Definition at line 30 of file qextserialport.h.

#define LS_SR   0x80

Definition at line 33 of file qextserialport.h.

#define LS_ST   0x40

Definition at line 32 of file qextserialport.h.

#define TTY_PORTABILITY_WARNING

(

s

)

qWarning(s)

Definition at line 16 of file qextserialport.h.

#define TTY_WARNING

(

s

)

qWarning(s)

Definition at line 21 of file qextserialport.h.

---

Enumeration Type Documentation

enum BaudRateType

Enumerator:

BAUD50
BAUD75
BAUD110
BAUD134
BAUD150
BAUD200
BAUD300
BAUD600
BAUD1200
BAUD1800
BAUD2400
BAUD4800
BAUD9600
BAUD14400
BAUD19200
BAUD38400
BAUD56000
BAUD57600
BAUD76800
BAUD115200
BAUD128000
BAUD256000

Definition at line 53 of file qextserialport.h.

enum DataBitsType

Enumerator:

DATA_5
DATA_6
DATA_7
DATA_8

Definition at line 79 of file qextserialport.h.

enum FlowType

Enumerator:

FLOW_OFF
FLOW_HARDWARE
FLOW_XONXOFF

Definition at line 103 of file qextserialport.h.

enum ParityType

Enumerator:

PAR_NONE
PAR_ODD
PAR_EVEN
PAR_MARK
PAR_SPACE

Definition at line 87 of file qextserialport.h.

enum StopBitsType

Enumerator:

STOP_1
STOP_1_5
STOP_2

Definition at line 96 of file qextserialport.h.
